Minton Colours Revealed in Victorian Tile Restoration

Discover the Causes of Deterioration in Minton Tile Floors in Ovington

Conducting a Detailed Assessment of the Floor's Initial Condition

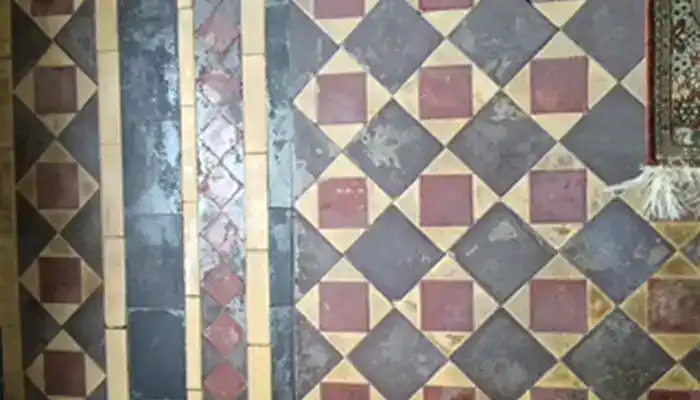

If your Minton tiles appear worn, patchy, and seemingly beyond repair, it is crucial to recognise that old coatings, adhesive remnants, and surface wear may be concealing the original design. In the Ovington hallway, a dark residue covered the surface, remnants of previous adhesive were visible, and tiles had started to shift near weakened joints. The once-vibrant surface no longer effectively showcased the original colour balance.

This restoration project aimed to rejuvenate a residential hallway floor that had been in continuous use for over a century, still revealing its original geometric pattern. The Minton tiles had endured decades of heavy foot traffic, yet the layering of waxes, acrylic sealers, and old adhesive had created a grimy barrier, making the floor seem far more damaged than it actually was.

The village of Ovington primarily features older residential properties, including period cottages and detached houses from the Georgian and Victorian centuries, alongside a handful of modern homes built in the latter half of the twentieth century. Victorian tile floors are commonly found in entrance hallways, porches, boot rooms, and kitchens within these older residences. Ovington is located in Buckinghamshire, close to Aylesbury, and falls within the HP22 postcode district, governed by Buckinghamshire Council. The village retains a traditional rural charm, with many properties still showcasing original period features and robust floor constructions.

Investigating Residue History and Revealing Hidden Marks on the Floor

If your hallway shows dark patches after carpet removal, it is likely that old glue and surface treatments have adhered to the tile rather than simply accumulating as loose dirt. After the covering was removed, the carpet adhesive left behind yellow-green and brownish residues, remnants of bitumen, hardened materials, and old glue smears. Addressing these issues required softening, scraping, and extraction, rather than merely performing another wash.

Contamination from paint and adhesive further complicated the condition of the Ovington floor, with paint splatters, scraped areas, and stained sections initially appearing permanent. In my experience, these residues often exist partially on the fired surface while penetrating the open pores. The restoration process necessitated distinguishing between removable contamination and genuine wear before making any sealing decisions.

Old wax and linseed oil coatings had significantly darkened the floor, as these ancient treatments can seep into the tile body, turning black over time. The dull surface was burdened with these protective coatings, soiling layers, grime, and residues from previous cleaning methods. Removing this layer was essential to accurately assess the original colours.

Identifying Loose Areas and Understanding Moisture Dynamics

If your hallway tiles are shifting or sound hollow, it is likely that excess moisture and heavy machine pressure are exacerbating the issue. The old permeable sub-floors beneath this hallway could allow water to infiltrate if excessive amounts were used, risking tile movement, lifting edges, dampness in the bedding, and the potential for instability spreading during the work.

Loose tile movement occurs when individual tiles shift due to inadequate bedding or grout support beneath them. Homeowners may notice cracked joints, hollow sounds, shifting tiles along grout lines, or small raised and sunken areas. The solution requires stabilising, re-fitting, or carefully working around vulnerable sections before employing stronger cleaning methods.

Subfloor moisture was treated as a critical factor because older floors were often installed without modern damp proof membranes. Breathable protection is essential for porous tiles, as trapped moisture, rising damp, and surface moisture can lead to salt issues and sealers that may whiten or fail, rather than providing effective protection for the tile body.

The risk of over-saturation influenced each cleaning decision, as excessive water can dislodge tiles, activate salt problems, and prolong drying after restoration. Techniques such as wet vacuum extraction, controlled rinsing, removal of soiled solutions, and the use of floor fans helped manage moisture levels, while damp meter readings confirmed the readiness for sealing before protective measures were applied.

Assessing Surface Wear and Identifying Patterns

If your main walkway appears flatter and greyer than the borders, decades of foot traffic have likely worn down the fired face more significantly in that area. The Ovington hallway exhibited this typical wear pattern, where the tile face became more porous under footfall, allowing for greater absorption of dirt, contaminants, and coating residues.

It is crucial to understand that this worn fired face cannot be rectified through grinding, as Victorian encaustic and geometric tiles are clay-fired at high temperatures. Their fired surface is chemically stable yet physically vulnerable to abrasion and unsuitable for acidic cleaning methods. The use of abrasive pads, harsh restoration techniques, and over-cleaning can damage soft clay inlays, ruin intricate patterns, and inflict long-term harm to the original surface. Such damage is a risk not worth taking.

Colour wear also varied significantly; black and red tiles tend to be more resilient under wear, while softer buff tiles may wear more quickly. The Ovington floor required cleaning, residue removal, and colour enhancement that respected the unglazed clay colours rather than imposing a uniform new-looking surface.

A well-restored Victorian tile floor showcases the original fired matte surface with consistent colour and pattern, while appropriately applied topical seals provide a slight protective sheen without altering the period character. This distinction was crucial in this instance, as the objective was to recover the original features and subtle sheen of a period hallway, rather than create an artificial surface.

Understanding the Value of Restoration

If the pattern is still discernible beneath the dark layer, restoration can often recover far more than standard cleaning would suggest. The darkest areas of the Ovington hallway were primarily composed of old coatings, wax build-up, acrylic sealers, adhesive, and ingrained soil rather than indicating complete pattern loss.

The restoration specification allowed for adequate dwell time, controlled soak periods, deck brush agitation where safe, the use of a floor buffer only in areas where movement risk was minimal, and wet vacuum extraction to remove slurry and softened residues. Hand-held diamond blocks were used solely for careful edge work where pads struggled, while scrapers, small brushes, hand buffers, and white pads managed softened coatings, excess sealers, and final appearances without resorting to aggressive abrasion.

Maintaining proper ongoing care, including pH-neutral cleaning, grit removal before wet mopping, and resealing at appropriate intervals, is paramount in extending the floor's lifespan. Stronger cleaning products should be avoided, as incorrect cleaners can leave residues, increase abrasion, and gradually strip protection from sealed floors. Broader care principles are outlined in the Victorian and Minton tile cleaning hub. A professionally restored and correctly sealed floor is significantly easier to clean and maintain compared to one that is worn or treated incorrectly.

Understanding the Impact of Old Adhesive and Failed Coatings on Dirt Accumulation in the Hallway

The presence of adhesive residues and ineffective coatings consistently attracted dirt back into the hallway, as they bonded contaminants to the worn clay surface. The old glue, bitumen, waxes, and surface coatings trapped grime in the pores, leading to standard mopping redistributing dirty solutions rather than effectively removing the residue layer.

This phenomenon, known as residue lock-in, occurs when old products, stripped coating fragments, and ingrained dirt remain trapped within the surface after cleaning. Homeowners frequently observe dark patches, cloudy areas, and a floor that appears dull again after drying. Correcting this issue necessitates the use of coating removers, controlled scrubbing, rinsing stages, and wet vacuum extraction.

Old residue retains dirt within worn clay surfaces.

How Victorian Tile Restoration Effectively Removes Heavy Residue Without Disturbing Loose Areas

Employing aggressive stripping methods can inadvertently loosen unstable historic clay tiles before safely removing the old coating layer. Rushed cleaning techniques typically use excessive water and pressure, which can lift loose tiles, damage vulnerable edges, and force slurry into weakened joints.

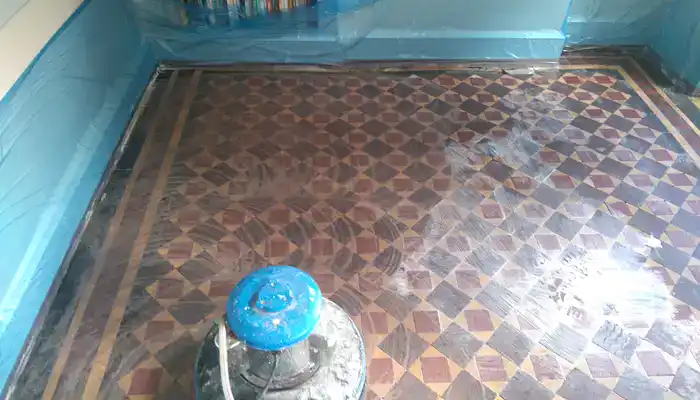

Controlled restoration techniques involved dwell time, low-moisture gel cleaning, careful scraper work, deck brush agitation, wet vacuum extraction, and repeated rinse control to lift softened coatings without saturating the bedding plane. This moisture-led sequencing is central to the proper restoration of Victorian tiles, as old floors require a harmonious approach to cleaning, stabilising, and drying decisions. The process effectively removed heavy residues while safeguarding the original layout.

Incomplete stripping would have resulted in old sealers, adhesive, and soiled solutions remaining in the pores, leading to a patchy appearance once the floor dried. The Ovington sequence achieved a significantly superior outcome, as softened residues were extracted rather than smeared around, and a dry run before sealing confirmed the surface was adequately prepared for protection.

The Clarity, Richness, and Manageability of the Restored Minton Floor

If your restored Minton floor appears clearer and richer after sealing, it indicates that the original colour was preserved beneath the coating residues. Initially, the Ovington floor appeared lighter after cleaning because the removal of waxes, old sealers, carpet adhesives, and grime from the surface unveiled the true colour.

The colour-enhancing impregnating sealer penetrated the pores, enriched the geometric patterns, and left no heavy coating across the tile surface. An oil-based sealer can be suitable for the right porous surfaces, but this floor called for breathable protection, with any excess sealer buffed off using a hand buffer, resulting in a low sheen that respected the original clay character.

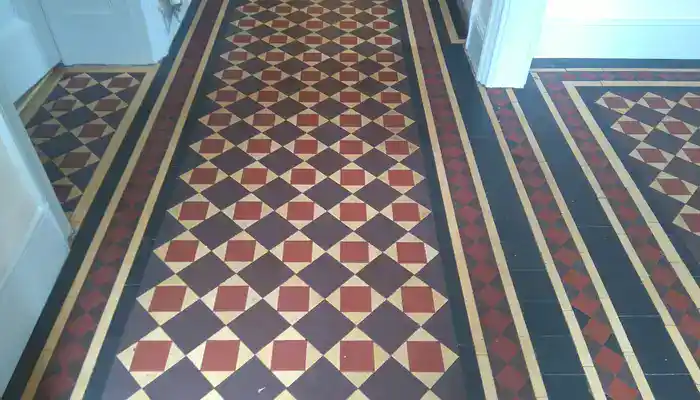

The completed hallway now looks significantly improved compared to its previous state. In many cases, restored period floors appear better than when they were first installed, as the original colours and patterns can finally be appreciated clearly. The floor also became easier to maintain, as sealed pores resist rapid soiling, while the authentic surface wear remains a testament to the floor's age and character.

Examining Case Studies of Victorian Tile Restoration Projects Revealing Hidden Pattern Loss

Many Victorian tile restoration projects expose similar hidden pattern loss when old coatings and worn clay create the illusion of permanent damage. The Ovington hallway closely mirrors a restoration project in Walsall, where loose areas and deep soil also influenced the restoration sequence. Both projects highlight the importance of contamination removal, drying, and breathable protection before the final colour can be accurately assessed.

Similar examples can also be found in Victorian tile restoration in Nottingham, Victorian tile restoration in Penkhull, and restoring colour to faded Victorian mosaic tiles. These pages maintain consistent restoration boundaries while illustrating how old coatings, worn surfaces, moisture behaviour, and colour recovery can differ from one floor to another.

The comprehensive Victorian and Minton tile cleaning hub provides valuable insights into cleaning and care queries without turning this Ovington case study into generic DIY instructions. The evidence presented here reflects a singular completed project: a dark, adhesive-marked, and worn hallway was successfully transformed into a clearer, richer, and more maintainable heritage surface.
