Three-Phase Power Solutions for Homes on the Mid North Coast

If you often experience circuit breaker trips while using your welder, or notice your lights dimming every time your air conditioning unit starts, it indicates that your existing single-phase power supply is likely inadequate for your needs. This issue is particularly common in areas such as Bellingen, Coffs Harbour, and the broader Mid North Coast, especially in rural locations and on larger properties where substantial equipment operates regularly.

This detailed guide aims to equip you with vital information about three-phase power, recognising the signs that an upgrade is warranted, the steps involved in upgrading your electrical system, and the potential costs associated with this transition. Our focus is on practical insights, avoiding technical jargon, to empower you to make an informed choice.

Discover the Advantages of Three-Phase Power: A Comparison with Single-Phase

In Australia, most households are powered by single-phase electricity. This can be likened to a single lane of electrical flow supplying your home, which is typically sufficient for lighting, refrigerators, televisions, and various power tools without major complications.

In contrast, three-phase power operates with three lanes of electricity. This configuration delivers a more substantial and consistent power supply, allowing it to support significantly heavier electrical loads without the risk of voltage drops or system overloads.

To highlight the differences:

• Single-phase: This system consists of one active wire supplying power, which is typical in most residential settings. It usually provides around 230V and adequately meets the demands of a standard household.
• Three-phase: This setup includes three active wires that distribute power in a rotating manner. It supplies approximately 400V and can handle much larger equipment without stress or risk of overload.

Many residential areas across the Mid North Coast are equipped for single-phase power. three-phase power may already be accessible on your street; it simply might not be connected to your property yet. This is an important factor to consider when thinking about an upgrade.

Recognising the Signs That Your Single-Phase Power Supply Is Inadequate

Often, homeowners may not realise the need for three-phase power until they encounter issues. Here are some common indicators often observed in properties located in and around Bellingen, Nambucca Heads, Urunga, and throughout the Mid North Coast:

• Lights dimming or flickering upon equipment startup: If your lights dim whenever a compressor, pump, or large motor starts, it suggests that your single-phase supply struggles with the initial current draw.
• Circuit breakers tripping frequently: This often occurs when multiple heavy appliances operate simultaneously. Although upgrading the switchboard may provide a temporary fix, persistent overloading indicates that switching to three-phase power is the best long-term solution.
• Inability to operate more than one heavy tool concurrently: If you must turn off the compressor to start the welder, it is clear that your power supply has reached its limit.
• Voltage drops affecting equipment performance: If motors run at reduced speeds, tools underperform, or sensitive electronics malfunction, low voltage can cause long-term damage to your equipment.
• Notification from your supplier that new equipment requires three-phase power: Many larger workshop machines, commercial air conditioning units, and irrigation pumps are designed specifically for three-phase power and will not operate on a single-phase supply.

If you identify two or more of these issues, it is wise to seek a comprehensive evaluation from a licensed electrician before investing in temporary solutions.

Typical Scenarios Necessitating Three-Phase Power on the Mid North Coast

The Mid North Coast features a variety of rural properties, lifestyle blocks, farms, and semi-rural homes, with many residents engaging in considerable work on their land. Here are some common setups that require three-phase power:

Heavy Machinery for Workshops and Sheds

Large workshop equipment demands significant power. If you operate any of the following, three-phase power is often the most efficient solution:

• MIG/TIG welders (larger models): Larger welding machines typically require three-phase power.
• Lathes and milling machines: Especially those intended for industrial use.
• Large air compressors: Models above approximately 5HP usually need three-phase power.
• CNC routers and plasma cutters: Commonly used in fabrication and woodworking workshops.

If you are setting up a serious workshop, consider consulting our guide on Powering a Rural Workshop — Dedicated Circuits for Heavy Tools and Equipment for more detailed information on creating an effective electrical layout.

Irrigation Systems and Water Pump Configurations

Bore pumps and extensive irrigation systems on farms and larger properties frequently require three-phase motors. Three-phase pumps operate more efficiently, have a longer lifespan, and can handle higher flow rates without the startup surge issues faced by single-phase motors, particularly over lengthy rural supply lines.

Pottery Studios and Kiln Operations

The hinterland areas surrounding Bellingen and Dorrigo host a vibrant creative community, and we have equipped numerous pottery studios. Larger ceramic kilns, especially those exceeding approximately 8kW, almost always require three-phase power to achieve and maintain the necessary firing temperatures effectively.

High-Capacity Air Conditioning Systems

Ducted air conditioning systems rated above approximately 15kW generally necessitate a three-phase supply. In larger properties — particularly those with multiple living areas or separate buildings — single-phase power cannot meet the demand. It is also advisable to implement surge protection when operating expensive HVAC systems.

Powering Secondary Buildings and Sheds

If you are extending power to a large shed, studio, or granny flat, and are already nearing the limits of your single-phase supply at home, this project often prompts a consideration for a three-phase upgrade. Our guide on Shed Wiring on Acreage provides an in-depth analysis of the wiring considerations involved.

Understanding the Process of Transitioning to Three-Phase Power

Shifting from single-phase to three-phase power is not a straightforward task that can be completed over a weekend. The process involves multiple stages, some of which necessitate coordination with your electricity distributor, which is Essential Energy on the Mid North Coast.

The following outlines the typical process:

Step 1: Conducting an Assessment and Providing a Quote

A licensed electrician will evaluate your current setup, including your switchboard, mains cable, meter location, and anticipated electrical usage. This assessment identifies the scope of work required and determines whether your existing wiring needs any concurrent upgrades.

Step 2: Submitting an Application to Essential Energy

Your electrician will submit an application to Essential Energy (the network distributor for the Mid North Coast) to request a three-phase power connection for your property. Essential Energy must verify that three-phase power is available on your street or supply line and will outline any necessary network-side work that needs to be performed.

• If three-phase is already accessible on your street: The process is generally more straightforward and faster.
• If three-phase needs to be extended to your area: This process can be more time-consuming and costly, as Essential Energy may need to install new lines or upgrade a transformer.

Step 3: Carrying Out Electrical Work at Your Property

Once Essential Energy grants approval, your electrician will perform the necessary work on your property:

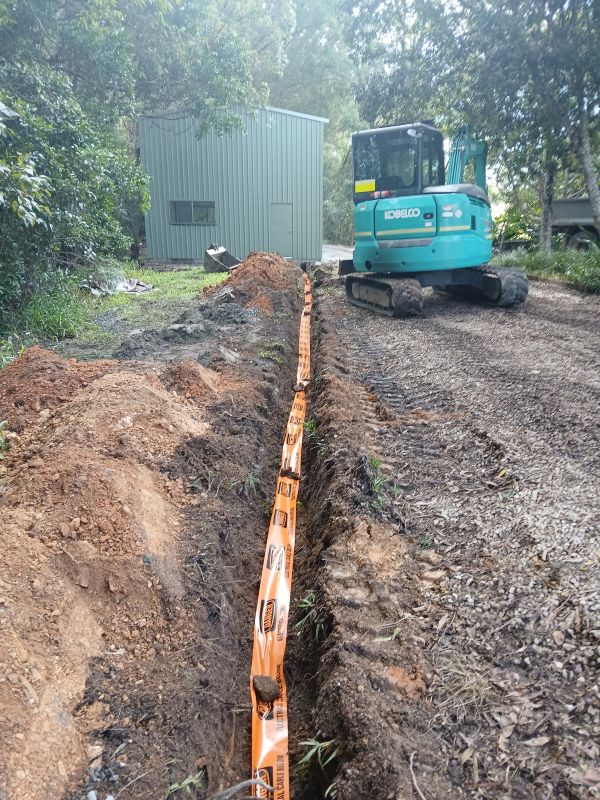

• Installation of new mains cabling: This involves running new cabling from the street supply to your meter and switchboard, as the existing single-phase mains cable is not suitable for three-phase connections.
• Meter replacement: Essential Energy will either replace your existing meter with a three-phase meter, or your electrician will coordinate this replacement with them.

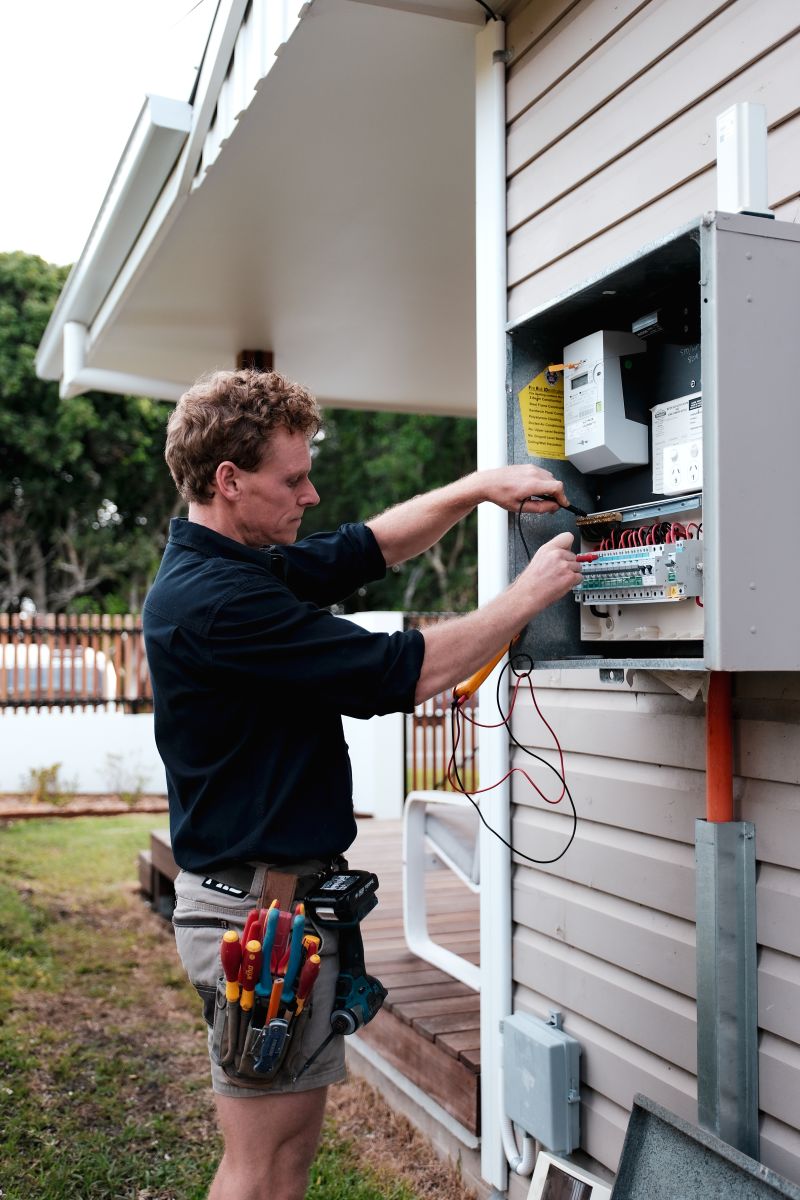

• Three-phase switchboard installation: Your old single-phase switchboard will either be replaced or upgraded to distribute three-phase power to the necessary circuits.
• Circuit wiring: New dedicated circuits will be installed for equipment requiring three-phase power, while your existing single-phase circuits will continue to function as they are.

If your property also requires new power points or switches in the workshop or shed, these additions are typically installed concurrently to optimise labour costs.

Step 4: Final Inspection and Activation of Your New Power Supply

All completed work will undergo a thorough inspection and certification. Following this, Essential Energy will energise the new three-phase connection. Your electrician will conduct a final check to ensure that everything operates correctly.

Understanding the Timeline for Your Three-Phase Power Upgrade

The duration of the upgrade process can vary significantly depending on factors related to Essential Energy:

• If three-phase is available on your street: The entire process (application, approval, electrical work, energisation) typically takes 4 to 8 weeks.
• If Essential Energy needs to extend the network: Expect the timeline to range from 8 to 16 weeks or longer, depending on the extent of their work.

The actual electrical work on your property usually takes between 1 to 3 days. Much of the waiting period is often linked to Essential Energy‘s application and connection process.

Assessing the Financial Considerations of a Three-Phase Upgrade

The costs associated with upgrading to three-phase power can vary based on the complexity of the job, the distance from the street supply to your switchboard, and the fees charged by Essential Energy for the network connection.

As a general estimate:

• Straightforward upgrade (three-phase already available on the street, short mains run): Starting from $8,000, which includes switchboard upgrades, new mains, and Essential Energy fees.
• More complex upgrade (longer mains run, extension needed from Essential Energy network, significant switchboard modifications): Starting from $15,000 and potentially much higher if Essential Energy needs to enhance existing infrastructure.

The connection fees from Essential Energy are separate from the costs charged by your electrician, and these fees vary based on location and the extent of work required on the network side. Your electrician should provide a detailed breakdown of both costs before you proceed.

Consider whether you might benefit from installing a generator changeover switch as part of the upgrade, especially on rural properties where power outages are more frequent.

Legal Requirement: All Electrical Work Must Be Conducted by a Licensed Electrician in NSW

This requirement is non-negotiable. In New South Wales, all electrical work, including three-phase upgrades, private power pole maintenance, switchboard installations, and circuit wiring, must be performed by a licensed electrical contractor. Attempting DIY electrical work is illegal and presents significant risks.

Hack-It Electrical Solutions holds NSW Electrical Contractor Licence #230609C. We provide three-phase upgrades throughout the Mid North Coast, from Bellingen and Dorrigo to Coffs Harbour, Sawtell, Woolgoolga, Nambucca Heads, and all surrounding areas.

Your Questions Answered: Frequently Asked Questions

Can Three-Phase Equipment Operate on a Single-Phase Power Supply?

In some cases, yes — this can be achieved using a phase converter or a variable frequency drive (VFD). these solutions can increase your costs, may diminish equipment performance, and might not be suitable for all applications. For those with multiple three-phase equipment items, upgrading to a three-phase supply is generally the more sensible long-term investment.

How Can I Check the Availability of Three-Phase Power on My Street?

Your electrician can verify this information with Essential Energy during the assessment phase. In many urban and semi-rural areas on the Mid North Coast, three-phase power is already present along the street; it simply may not yet be connected to your property.

Will Upgrading to Three-Phase Power Increase My Property's Value?

It can, especially for rural and semi-rural properties. Three-phase power serves as a significant selling point for prospective buyers looking to operate workshops, farms, or home businesses, as it indicates that the property's electrical infrastructure is robust and capable of supporting more than just standard residential needs.

Is Three-Phase Power Necessary for Solar Panel Installations?

Standard residential solar systems usually operate on single-phase power. larger commercial-grade solar setups (typically exceeding 15kW) do require three-phase power. If you plan a significant solar installation alongside other substantial electrical loads, considering three-phase power as part of your overall energy strategy is advisable.

What Are the Ongoing Cost Differences Between Single-Phase and Three-Phase Power?

Your electricity rates will not change simply by switching to three-phase power. You will pay for your actual usage, just as you did previously. The daily supply charge may be slightly higher under a three-phase tariff, but the difference is minimal. The true cost benefits arise from the improved efficiency and reliability of your equipment.

Are You Ready to Evaluate Whether Three-Phase Power Is Suitable for Your Property?

We are level 2 electricians ready to help you overcome your power limitations. If you are planning a workshop, shed, or equipment upgrade that demands substantial power, contact us. We will assess your current setup, confirm the availability of three-phase power with Essential Energy, and provide you with a clear evaluation of what is involved and the associated costs.

Reach out to Hack-It Electrical Solutions at 0402 079 803 or get in touch through our contact page.

We are a licensed electrical contractor serving Bellingen, Coffs Harbour, Sawtell, Nambucca Heads, Woolgoolga, Urunga, Dorrigo, Valla Beach, and Toormina. NSW Licence #230609C.
