Dedicated Circuits for Heavy Tool Workshop Power Solutions

If you own a shed on a rural property and are contemplating its transformation into a fully operational workshop, paying meticulous attention to the electrical configuration is essential. Utilising a MIG welder, air compressor, and table saw on the same circuit as your home can result in significant complications, including frequent circuit breaker trips, flickering lights, and dangerous overload scenarios that threaten both safety and productivity.

This detailed guide outlines the critical aspects of wiring a dependable workshop in rural regions of the Mid North Coast. We will delve into the significance of dedicated circuits, sub-boards, and the advantages of three-phase power for substantial machinery. If your requirements are limited to basic electrical needs—such as lighting and a few outlets—please refer to our guide on Shed Wiring on Acreage for a suitable starting point. This article specifically addresses workshops that necessitate considerable power for demanding tasks.

Why Dedicated Circuits Are Essential for Your Workshop's Power Supply

Many households function with multiple power outlets on shared circuits, which suffices for low-demand appliances like kettles and televisions. problems arise when attempting to operate a 32-amp MIG welder alongside an air compressor. Such scenarios can lead to severe complications if not managed correctly.

Consider the potential drawbacks of connecting heavy machinery to residential circuits:

• Frequent circuit breaker trips — A welder drawing over 30 amps on a 20-amp circuit will immediately trip the breaker or, even worse, cause the wiring to overheat before the breaker can respond.
• Voltage drops — Long cable runs from the main board to the shed can result in voltage sag. This situation can cause your tools to run at elevated temperatures, operate more slowly, and wear out more quickly.
• Power interruptions in the home — Your partner might experience power loss in the kitchen due to the compressor’s startup, often leading to awkward conversations.
• Increased fire risks — Overloaded wiring within walls and cable runs is a common cause of electrical fires in rural settings.

Establishing dedicated circuits can effectively mitigate these concerns. Each heavy tool receives its own dedicated circuit, sized appropriately for its load, along with individual breaker protection. This arrangement ensures that no circuits are shared, thus preventing overload.

Analyse the Electrical Demand of Common Workshop Equipment

Before your electrician can create an effective circuit layout, understanding the power requirements of your equipment is crucial. Here’s a breakdown of the typical power consumption for common workshop tools:

• MIG welder — Requires between 15A and 32A depending on the model. Larger 240V welders typically operate at the higher end. Three-phase units will have different power requirements (more on that later).
• Air compressor — Consumes approximately 10A to 15A. The startup surge can be considerable—compressor motors often draw three to four times their running current for a few seconds at startup.
• Table saw — Generally requires between 10A to 15A for a quality cabinet saw. Less expensive contractor saws may consume less power, but you are likely not seeking a budget option.
• Lathe (wood or metal) — Similar to table saws, these typically require between 10A and 15A, with metal lathes generally being on the higher end.
• Dust extractor — Approximately 10A for a single-phase unit. It must operate continuously while using other tools, meaning it should be on its own circuit.
• Plasma cutter — Draws between 20A and 30A, similar to a welder, thus necessitating a dedicated circuit.

When you calculate the total power draw, it becomes clear that a single 20-amp circuit from the house will not suffice. A well-equipped workshop can easily demand 80 to 100+ amps across all circuits when operating at full capacity, highlighting the need for a comprehensive electrical plan.

Choose the Right Circuit Breaker Size and Implement RCD Protection

Every circuit in your workshop requires a breaker that matches the cable size and anticipated load. Your electrician will determine this based on your equipment, but as a general guideline, consider the following:

• 15A or 20A circuits — Suitable for general power points, dust extractors, lighting circuits, and lighter tools.
• 32A circuits — Necessary for welders, plasma cutters, and other heavy single-phase machinery that requires substantial power.
• Three-phase breakers — These should be sized according to specific equipment requirements (details below).

RCD protection is imperative. In line with AS/NZS 3000 (the Australian Wiring Rules), all power and lighting circuits must include RCD (safety switch) protection. This legal requirement is designed to guard against the high-risk nature of workshop environments.
Concrete floors, metal tools, dust, and moisture elevate the potential for earth faults. RCDs quickly cut power if there is a current leak to earth, which can mean the difference between a minor shock and a serious injury.

Typically, your electrician will employ a combination of RCDs and MCBs (miniature circuit breakers), or RCBO units that integrate both functionalities. RCBOs are particularly beneficial in workshops as a fault in one circuit does not interrupt power to others, leading to a more reliable electrical system.

Install a Dedicated Sub-Board to Accommodate Your Workshop's Electrical Needs

Rather than running multiple individual cables back to the main switchboard, installing a dedicated sub-board in your workshop offers a more efficient alternative. Here are the benefits:

• Shorter cable runs — One heavy feed cable connects from the house (or a separate meter) to the workshop board, followed by shorter runs from the sub-board to each outlet. This setup reduces voltage drop and lowers cable expenses.
• Simplified fault diagnosis — Each circuit is clearly labelled and easily accessible within the workshop. If a breaker trips, you won’t have to return to the house to reset it, enhancing efficiency.
• Future expansion — A properly sized sub-board allows for the addition of more circuits in the future, making it simple to incorporate new tools later.
• Isolation capability — You can turn off all workshop power from a single main switch without affecting the house's electricity, a crucial safety feature.

If your house switchboard is outdated or operating at full capacity, an upgrade may be necessary to adequately support the workshop sub-board. Older ceramic fuse boards are unlikely to safely manage the increased load.

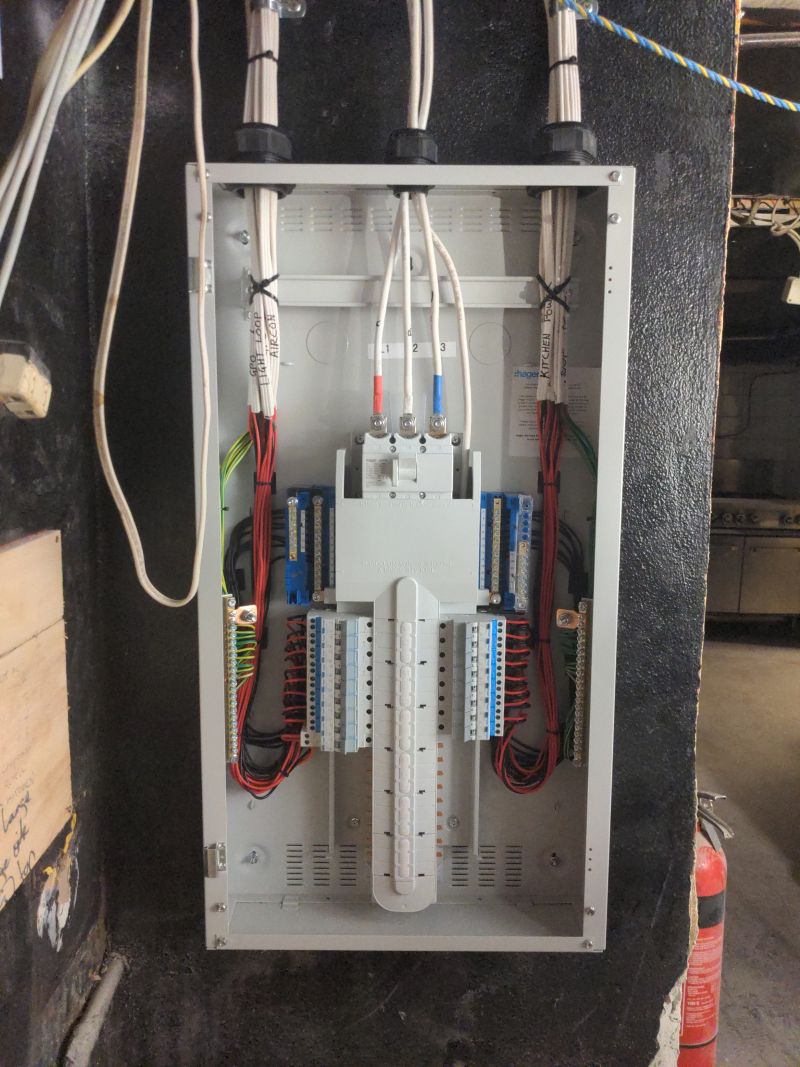

A typical workshop sub-board installation includes a main switch, individual RCBOs for each circuit, a dedicated lighting circuit, and a surge protection device. We will size the incoming feed cable based on the total expected load plus a buffer for future additions to ensure long-term efficiency.

Create a Comprehensive Lighting Plan for Your Workshop

Proper lighting is vital for safety in your workshop. Clear visibility is paramount, especially when working with sharp blades and hot materials. Here are some key lighting considerations:

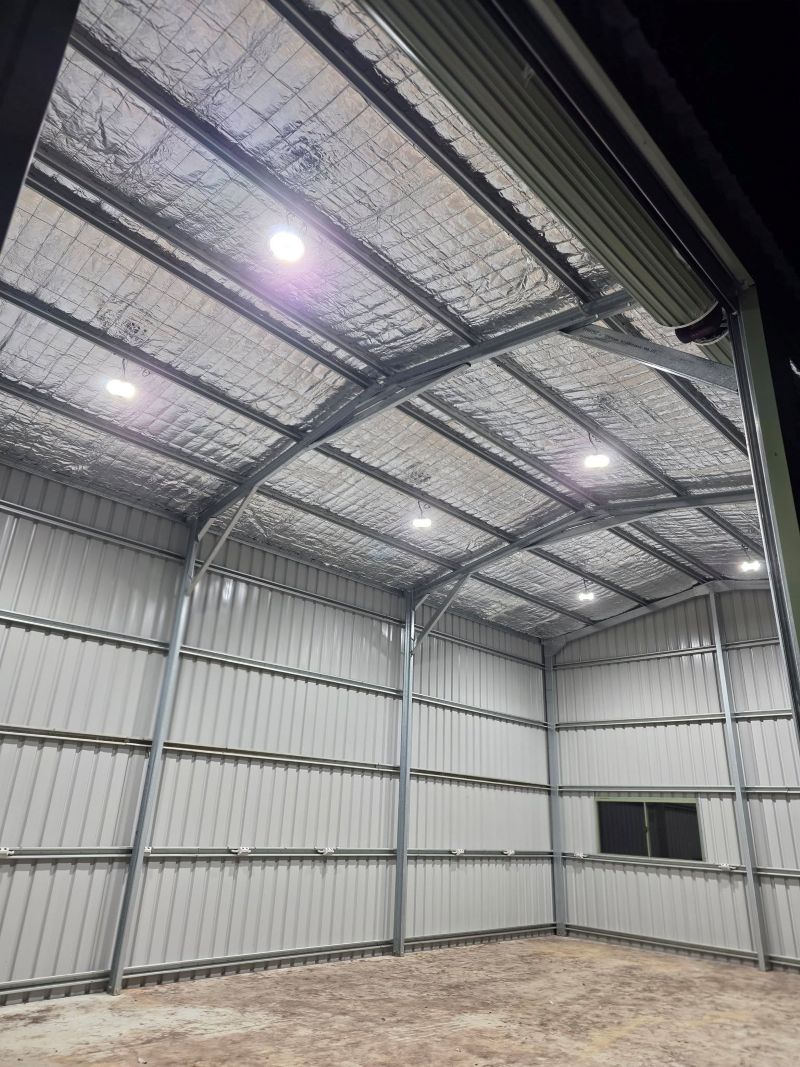

• High-lumen LED battens — LED panels or battens provide bright, even illumination throughout the space. Aim for a minimum of 500 lux at bench height to ensure visibility.
• Dust-proof fittings — Standard lights can get obstructed with sawdust and metal shavings. Opt for IP-rated fittings that are dust and moisture resistant for durability and safety.
• Task lighting at workstations — While overhead lighting covers the general area, focused lighting at the workbench, lathe, and drill press is crucial for precision work, enhancing both productivity and safety.
• Separate lighting circuit — Lighting should operate on its own circuit, ensuring you still have illumination if a power circuit trips. Being left in darkness next to a running table saw poses a significant safety risk.

We have extensive experience with lighting layouts in commercial environments. Our team can assist you in devising a workshop lighting scheme that greatly improves your working conditions while adhering to safety standards.

Plan for Efficient Ventilation and Dust Extraction Circuits

When involved in woodworking or welding, ensuring proper ventilation is just as important as having adequate electrical power. Dust extraction systems and exhaust fans require their dedicated circuits for several critical reasons:

• Continuous operation — Your dust extractor must run whenever you are cutting. It cannot share a circuit with the tool it serves, as this would compromise safety and effectiveness.
• Motor startup loads — Dust extraction fans and collectors can experience significant startup surges, similar to compressors, necessitating dedicated circuits.
• Interlocked switching — In a well-designed workshop, the dust extractor can be wired to activate automatically when specific tools are powered on. This requires careful circuit design and planning.

Plan for at least one dedicated 15A circuit for dust extraction and another for general ventilation to ensure proper airflow. If you are using a cyclone-style dust collection system, it may require a 20A circuit based on motor specifications.

Explore the Benefits of Three-Phase Power for Your Heavy Equipment

When you are engaged in intensive metalwork or operating large compressors (5HP+) or commercial-grade woodworking machinery, single-phase power may reach its limits. Three-phase power offers several distinct advantages:

• Increased power capacity — Three-phase motors are more efficient and provide greater power without the excessive startup surges commonly associated with single-phase motors.
• Support for larger welders and plasma cutters — Industrial MIG/TIG welders and CNC plasma tables typically operate on three-phase power, ensuring optimal performance.
• Smoother operation — Three-phase motors operate more smoothly and run cooler, extending the lifespan of your tools and enhancing overall efficiency.

Accessing three-phase power in rural areas of the Mid North Coast depends on availability at the street level. Some properties may already have a three-phase supply, while others might require a phase converter or a new connection from Essential Energy.
For more information, consult our guide on Do I Need Three-Phase Power on My Property?

If three-phase power is available, your workshop will require the installation of a three-phase switchboard equipped with appropriately rated breakers and an effective earthing system to ensure safety and compliance.

Protect Your Equipment with Surge Protection

Tools that incorporate electronic controls, variable frequency drives (VFDs), digital displays, and inverter welders are particularly vulnerable to voltage spikes. Your workshop generates surges every time a large motor starts or stops. Coupled with the voltage instabilities often found in rural power lines, your equipment faces significant risk.

Installing a surge protection device (SPD) at the sub-board can intercept voltage spikes before they impact your tools. This is a cost-effective measure compared to the expense of replacing the electronic components of a $3,000 welder or CNC controller.

If your property is prone to storms—which is common in the Mid North Coast—we recommend adding surge protection at the main switchboard to safeguard against lightning-induced surges that could damage your equipment.

For properties that rely on a generator for backup power, incorporating a generator changeover switch ensures smooth transitions between mains power and generator supply without risking back-feeding or damaging connected equipment.

Incorporate Additional Features into Your Workshop Fit-Out

Here are several more features to consider for your workshop wiring from the outset:

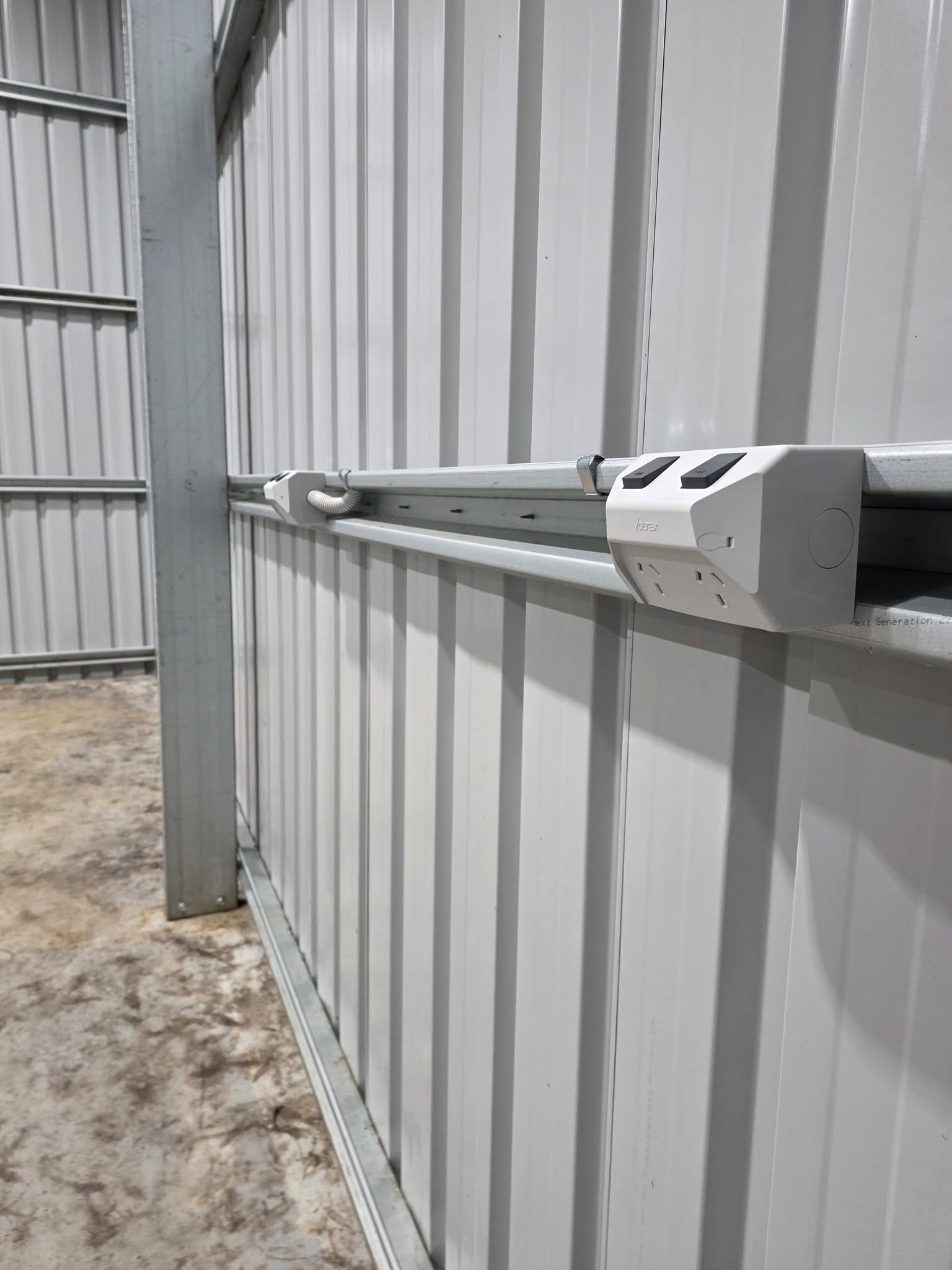

• Ample power points — Install more power points and switches than you think you will need. Use weatherproof GPOs if the workshop is open-sided. Consider double power points at every bench and outlets conveniently located near key machinery.
• Data and communications — If you require internet access for streaming music, operating a CNC machine, or monitoring security cameras, plan for data and TV wiring concurrently with the electrical setup. It is significantly easier to run cables during the initial fit-out than after the walls are completed.
• External lighting — Include floodlights outside the workshop to facilitate access during early mornings and late evenings, especially in rural areas that lack sufficient street lighting.
• EV or equipment charging — If you are using electric equipment (such as battery-powered tools, an electric vehicle, or an electric quad bike), implement a dedicated charging circuit to prevent overloads on general outlets.

Estimate the Costs for Your Workshop Electrical Installation

Cost estimates will vary based on the size of the workshop, the number of circuits needed, and whether three-phase power is required. As a rough guideline for the Mid North Coast, consider the following:

• Basic single-phase setup (sub-board, 4–6 circuits, lighting) — Starting from $5,000
• Complete dedicated sub-board (8–12 circuits, multiple heavy tool circuits, dust extraction, comprehensive lighting design) — Starting from $10,000
• Three-phase workshop build (three-phase supply, dedicated board, heavy equipment circuits, complete fit-out) — Starting from $15,000+

These figures represent starting points. Complex layouts, lengthy cable runs from the mains, or the need for upgrades from Essential Energy will increase overall costs. We provide transparent quotes tailored to your specific workshop and equipment requirements—there are no hidden fees involved.

Important Note: All Electrical Work Must Be Executed by Licensed Professionals

This is a crucial point to emphasise. In New South Wales, all electrical wiring work must be conducted by a licensed electrician. This includes the installation of new circuits, sub-boards, power points, and the connection of equipment. There is no exemption for DIY electrical work, even on your own property, to ensure safety and compliance.

Hack-It Electrical Solutions holds NSW Electrical Contractor Licence #230609C and operates throughout Bellingen, Coffs Harbour, Sawtell, Nambucca Heads, Woolgoolga, Urunga, Dorrigo, Valla Beach, and Toormina.

Engaging in unlicensed electrical work can void your insurance, create significant safety hazards, and result in substantial fines. If someone offers to perform the work at a reduced cost without a licence, it is not a saving—it is a risk that could have dire consequences.

Your Frequently Asked Questions Answered

Is It Possible to Use My Welder from a Standard Power Point?

Small stick welders (up to approximately 140A output) can indeed be used with a standard 10A or 15A power point. larger units require a dedicated circuit. A MIG welder with a capacity of 200A or more connected to a 10-amp GPO will trip the breaker instantly or potentially cause the wiring to overheat if the breaker is faulty. If you are welding regularly, it is essential to have a dedicated 32A circuit installed for safety and efficiency.

How Many Circuits Are Typically Required in a Workshop?

The number of circuits required depends on your tools, but a well-equipped workshop generally needs a minimum of 8 to 12 circuits. This includes dedicated circuits for each heavy tool (welder, compressor, plasma cutter), general power point circuits, dust extraction, lighting, and a couple of spares for future additions. We customise the design based on your specific equipment list to ensure optimal functionality.

Is Three-Phase Power Necessary for a Home Workshop?

Not necessarily. Most home workshops function adequately on single-phase power with dedicated circuits. Three-phase power is only essential if you are using commercial-grade equipment, such as large compressors (5HP+), three-phase welders, or CNC machines. Refer to our comprehensive guide on Do I Need Three-Phase Power on My Property? to determine if it aligns with your needs and operations.

Can My Existing Switchboard Support a Workshop?

It is possible. If your house switchboard is modern and has spare capacity, we can often connect a workshop sub-board to it. If it consists of an outdated ceramic fuse board or is fully loaded, an upgrade will be necessary before proceeding. Our team will assess this during the quoting process to ensure your workshop is adequately powered.

What Is the Typical Duration for a Workshop Electrical Fit-Out?

A basic single-phase setup can typically be completed within 1 to 2 days. A full fit-out encompassing multiple heavy circuits, three-phase power, and comprehensive lighting usually takes 3 to 5 days, depending on the complexity and distances for cable runs. We will provide a timeline along with your quote to keep you informed throughout the process.
